GROUND LEVEL LOADING
It’s simple! The trailer’s deck lowers and raises. This technology allows you to drive equipment on and off the trailer.

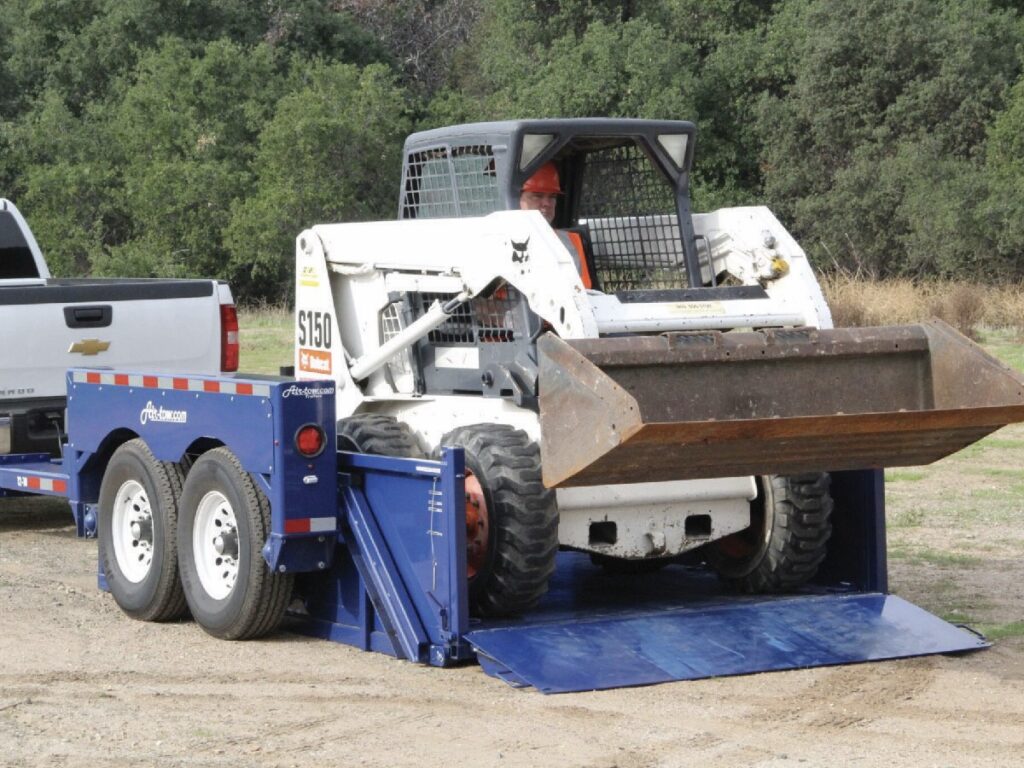

Air-tow’s ground-level loading technology uses a unique hydraulic system to lower the entire deck of the trailer flat to the ground, providing a smooth and level surface for loading and unloading equipment. This system is powered with a push of a button.
Ground-level loading is important for creating ease, safety, efficiency, and versatility in daily operations.

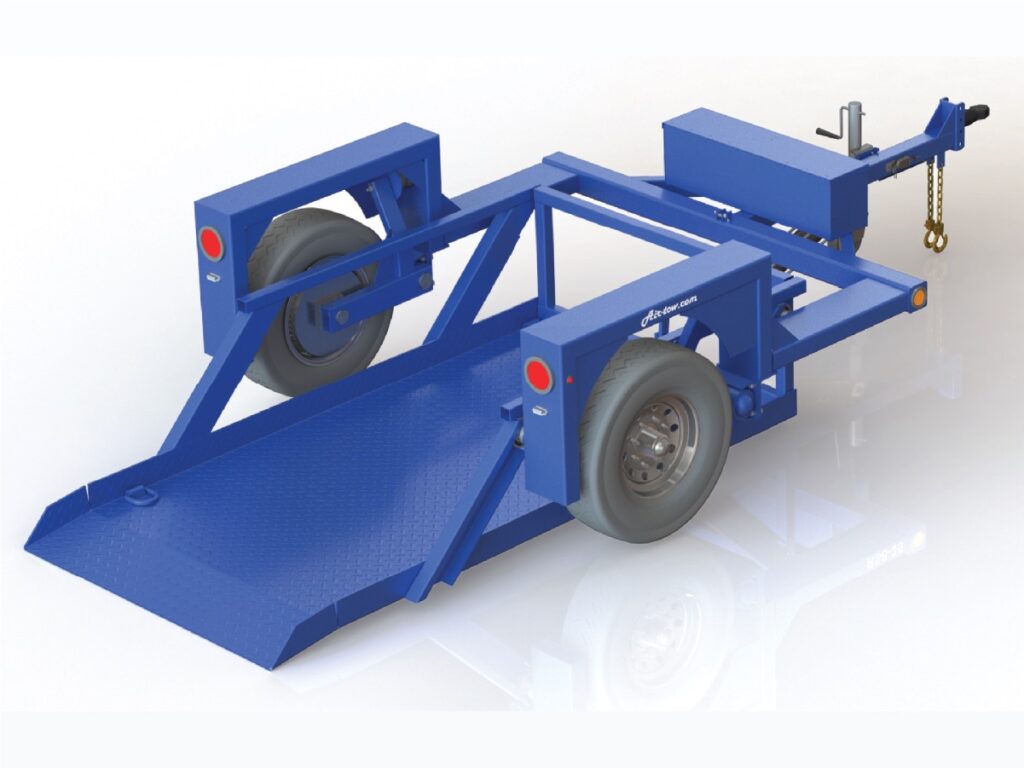

The unique Air-tow flatbed uses a totally different concept to make loading easier and safer. The trailer deck remains completely level as it raises and lowers hydraulically in less than 30 seconds. At ground level, you simply drive your equipment onto the trailer. Single axle models range from 3,500 to 5,500 lbs. capacities.Tandem axle models range from 7,000 to 14,000 lb. capacities.

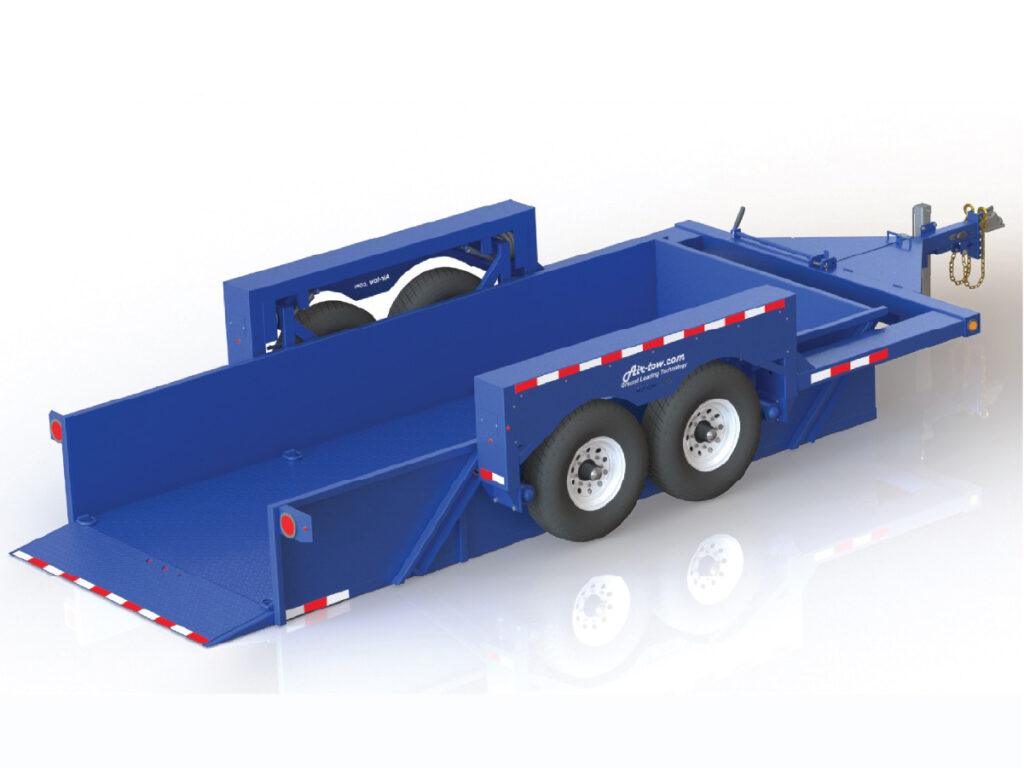

Enjoy the same features as the flatbed trailers with the added convenience of a 24″ high enclosed box trailer. It is safe and easy to enter the trailer at ground level. The full width, low angle ramp makes loading with a hand cart or dolly a simple operation. Single axle utility models come with a 5,500 lb capacity. Tandem axle utility models range from 7,000 to 14,000 lb. capacities.

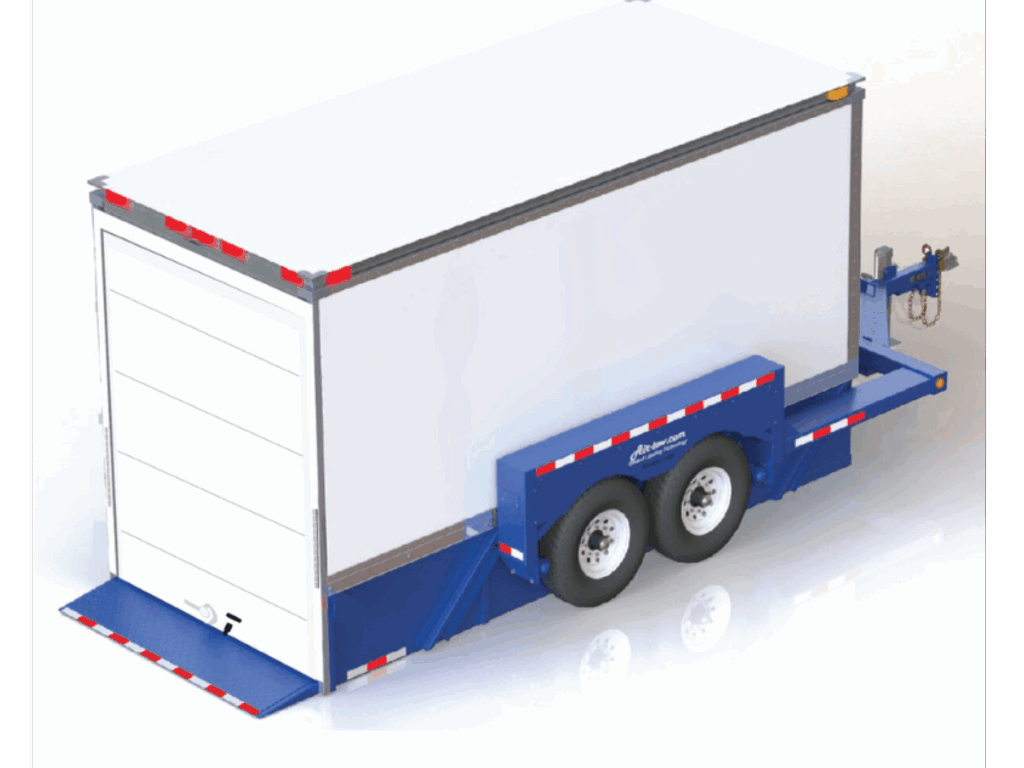

Air-tow offers fully enclosed, weatherproof trailers with the same ground-level loading and extremely smooth ride as the rest of the line. Keeps your cargo clean and protected from the elements and gives your job site a secure location for storage. All enclosed models come standard with roll-up doors. Swinging doors are available as an upgrade (excluding E-16XL).

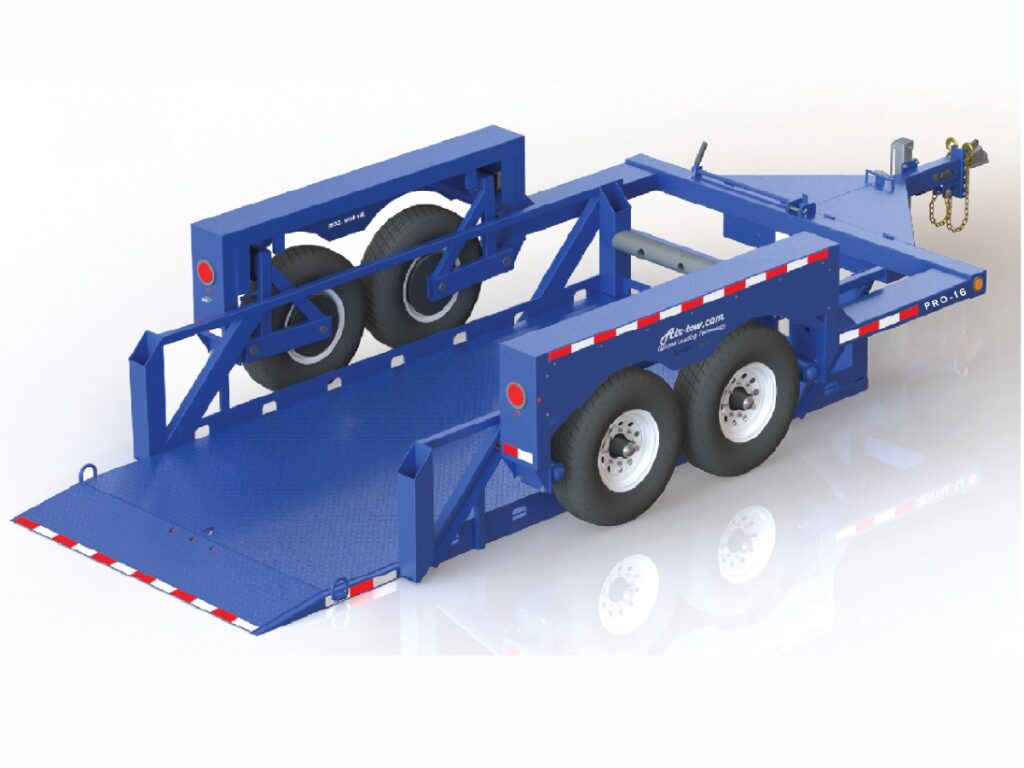

The PRO trailer is an enhanced flatbed model with features that make it ideal for contractors, landscapers, construction companies, and other professionals The standard features found on this trailer include: corner chain pockets, tie down bar, rear center chain slots, and 2 tail end D-rings for a total of 22 different anchor points. A rubber bumper and a 10″ deep compartment are included.

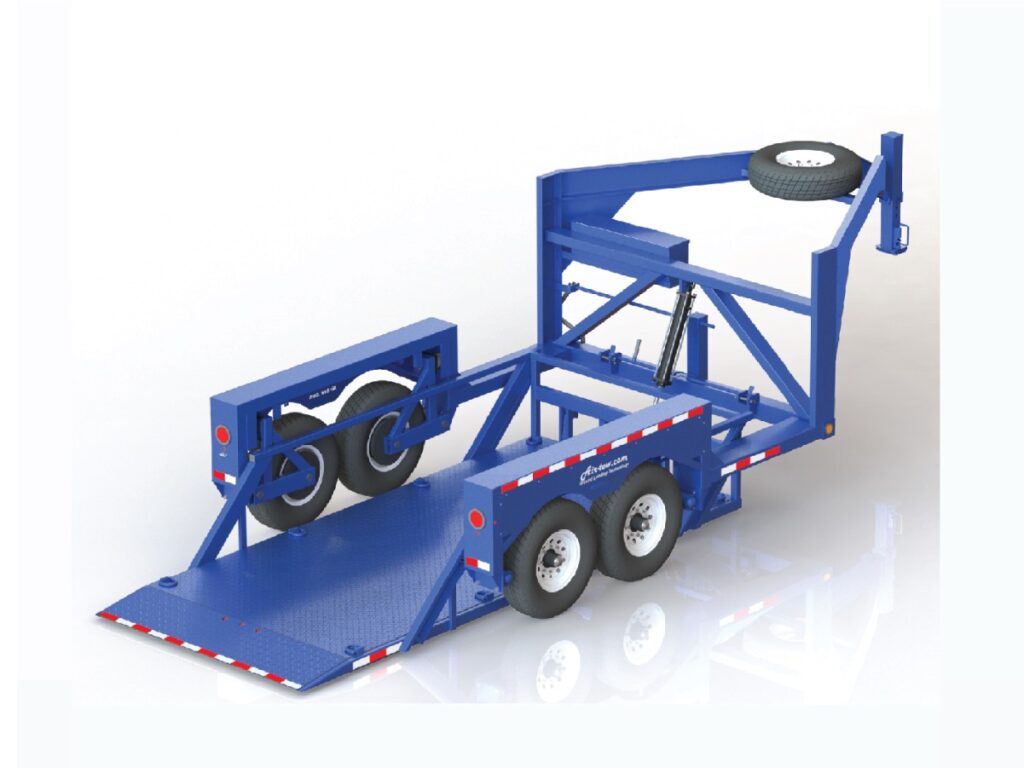

Extra load and weight distribution to the tow vehicle ensures safer and better operator control. A gooseneck can accept 20-25 percent hitch load, while a bumper hitch can only carry 10-15 percent. The hitch weight is placed directly over the rear wheels, any lateral pressure is transferred directly to the ground through the truck tires. A gooseneck is noticeably more stable when traveling curvy roads. Enhanced maneuverability is a real plus- this is especially helpful when backing the trailer or when there is limited space to make a u-turn.
The DH-10 creates a “mobile dock” that allows the operator to load low profile equipment with speed and ease in any situation. With an easy-to-use hydraulic system and an 8000 lb. capacity, the DH-10 is everything Air-tow customers have come to enjoy with the added benefit of 60″dock height loading. The safest way to transport heavy equipment such as forklifts and products with delicate parts such as safes with ground-level loading.

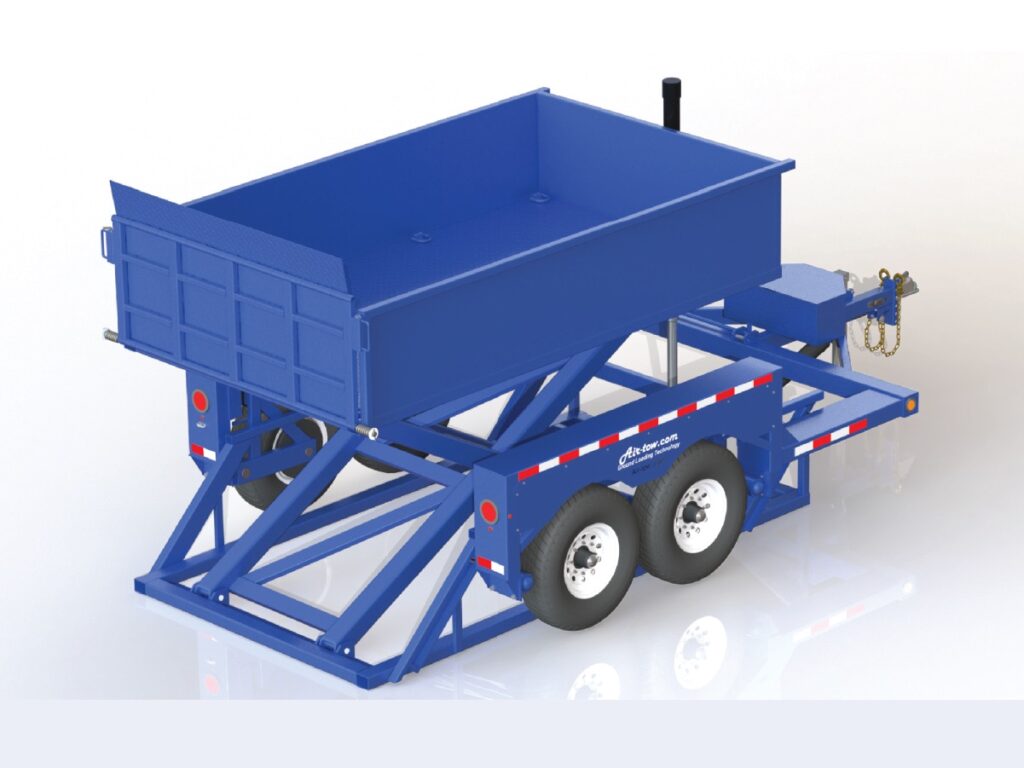

This hybrid trailer lowers flat to the ground for safer, easier and faster loading and unloading as well as being a full-blown dump trailer. With a load capacity of 10,000 lbs and a dump capacity of 8,000 lbs, the “3D” trailer is ideal for moving your skid steer to the job site, then loading and hauling debris. With a dual fold-down/spreader tailgate, you have the option of how you load and unload your equipment and materials.

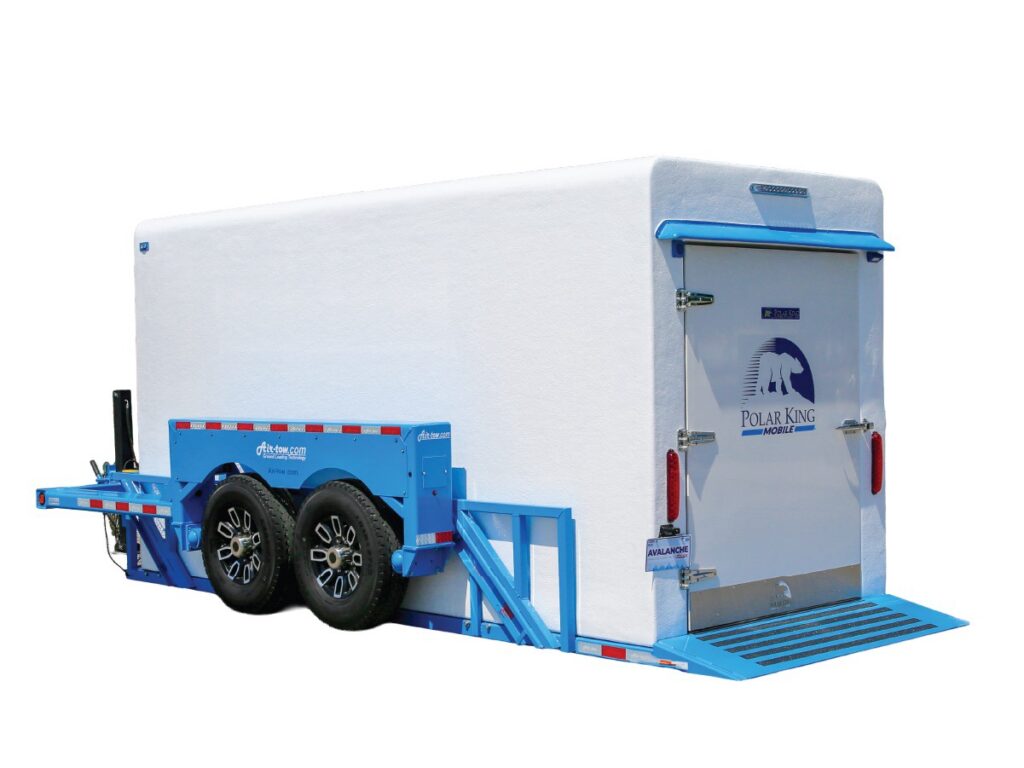

This Polar King Mobile refrigerated trailer combines the precision of the Air-tow ground-level loading trailer with the patented seamless fiberglass Polar King structure and a high-performance GOVI refrigeration system. Engineered for industries where cold storage on-the-go is mission-critical, this unit delivers commercial-grade refrigeration in a mobile, self-contained package.
