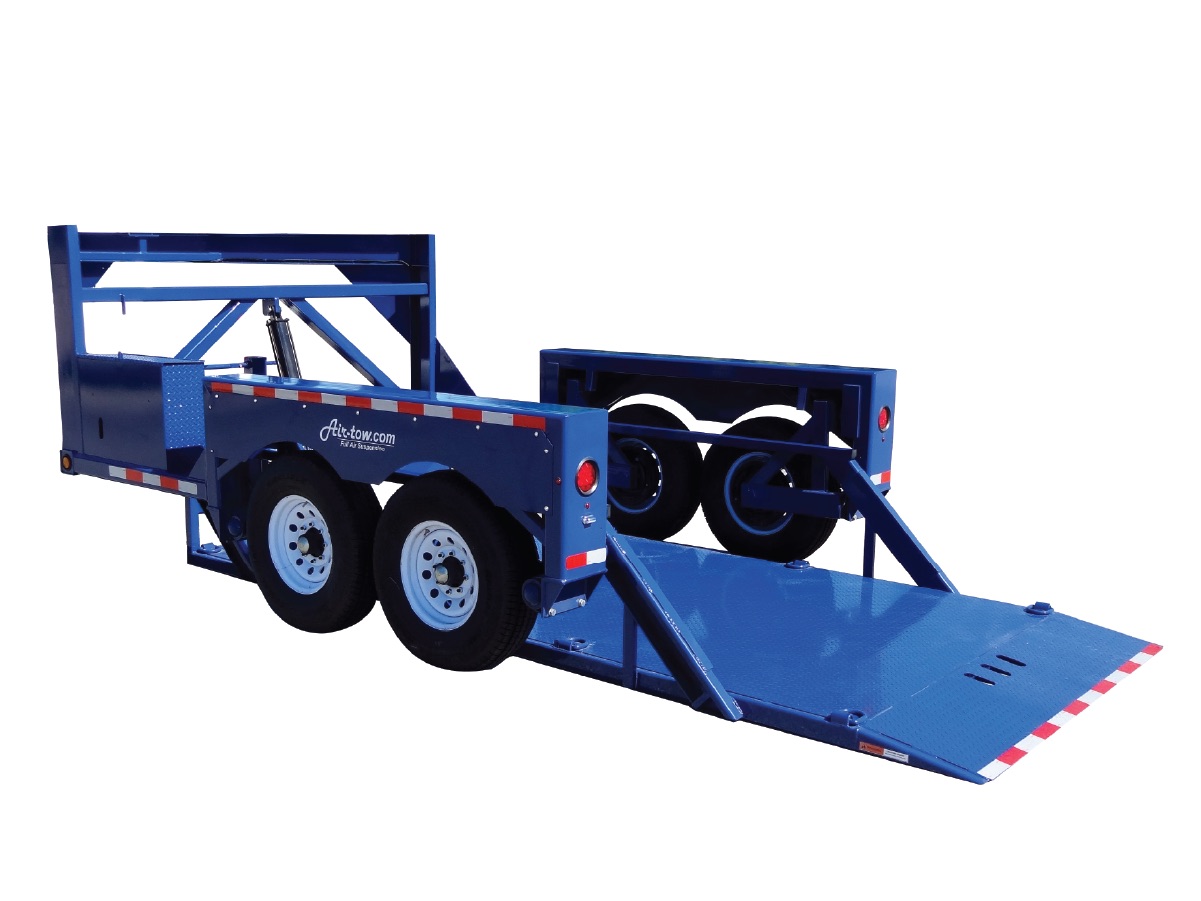

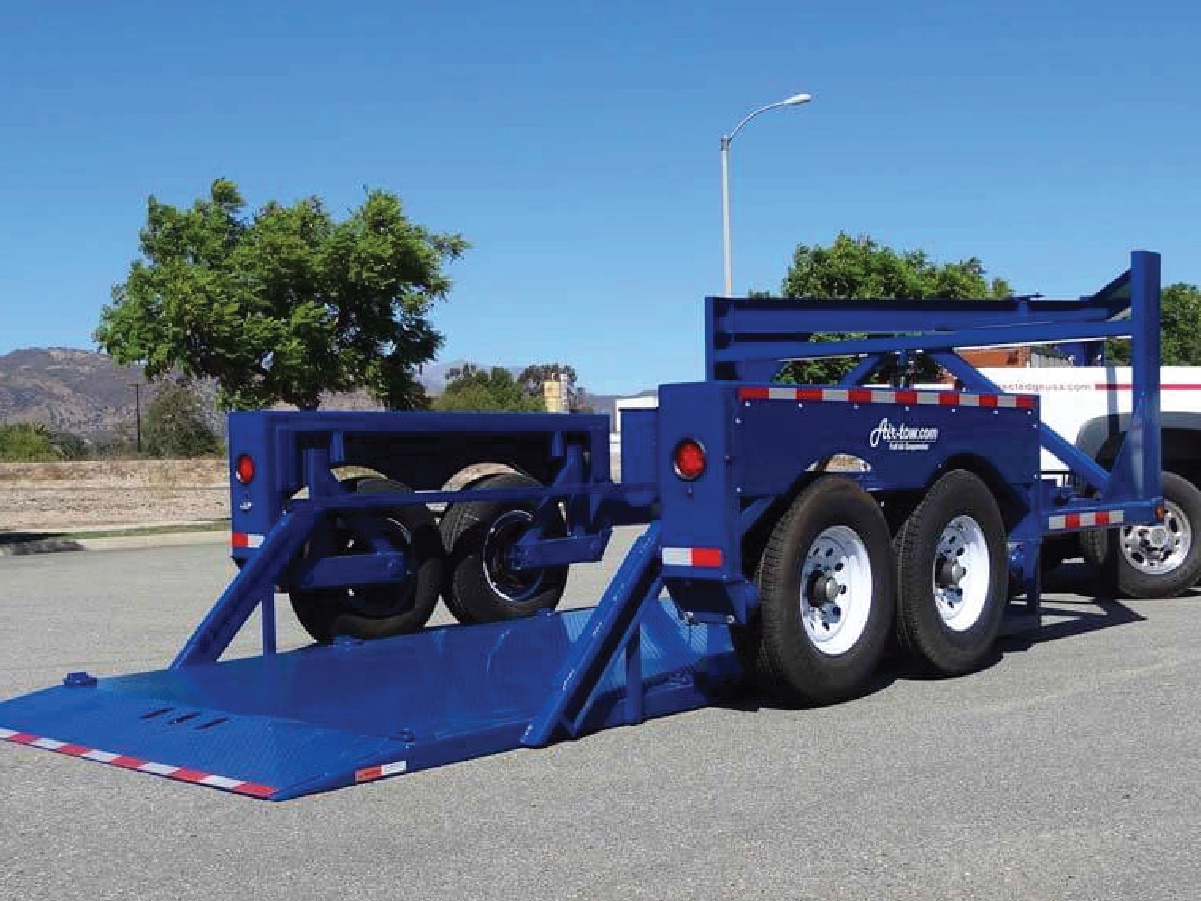

The features of the Air-tow line are now incorporated in a gooseneck model. The heavy-duty steel diamond deck remains level as it raises and lowers. You now have safe and easy loading as well as added maneuverability when towing.
| GVWR | 16,595 lbs. (9,995 lbs. also available) |
| Capacity | 12,000 lbs. |
| Weight (varies w/ opt.) | 4,595 lbs. |
| Deck Width | 6’3″ (75″) |
| Deck Length (inc. 18″ Dovetail) | 16′ |
| Deck Material | Diamond Steel Plate |
| Dovetail Size | 18″ |
| Overall Width | 102″ |
| Axles | Tandem |
| Wheels/Tires | 16″ – 12 Ply |
| Brakes (electric-std.) | Electric |
| Suspension (rubber/air) | Rubber |
| Lift Mechanism | Hydraulic |
| Coupler | 2 5/16″ Ball |
| Coupler Height Adjustment | 36″ – 41″ |
| Gooseneck Length | 84″ |
| Gooseneck Frame | 8″ Channel |
| Jack-Drop Leg | 10,000 lbs |
| Color | Royal Blue |
